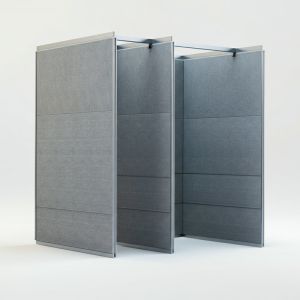

Office Acoustic operable partition wall system / Movable Partitions
Acoustic partition walls—also known as folding, sliding, or movable
partitions—offer exceptional quality, durability, acoustic
separation, and ease of use. These versatile solutions enhance the
flexibility and functionality of any space.
Operable partitions feature interlocking flat panels, custom-made
up to 1224 mm wide, and are suspended from overhead tracks. They
come in various heights, from standard over-the-counter options to
panels exceeding 15000 mm for large venues like convention centers.
What We Offer:
1.Custom OEM & ODM services designed to meet your exact
requirements.
2.Expertise in handling projects with major clients.
3.Detailed product specifications and value-engineered
alternatives.
4.Provision of submittal drawings.
5.Advanced German partition technology for global space solutions.
6.Highly competitive pricing.
7.Rapid response and adaptability to construction-related issues.
8.Swift follow-up with quotes.
9.Timely delivery for substantial orders.
Roller Option & Feature
1. Dupont POM roller
2. 304 stainless steel heavy duty roller with safety device & CNC
machining
3. Unique and patented wheel surface and shape make the whole
movable partition easy to use
Panel Option & Feature
1. Thickness: 68mm & 89mm & 105mm
2. Wide variety of acoustical and decorative finishes available
3. 6061-T6 profile and inside Q235 steel frame for superior
durability
4 Top & bottom jack lifting mechanism seal are with power of 800N.
Magnetic seal in concave & convex profile has magnetic attraction
of 40N/m.
SPECIFICATION:
| GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS |
| | Dimensions in mm* | Design |
| Series | Element thickness | Element width* (min./max.) | Clear height* (min./max.) | Framed construction | Panel fixing | Element interconnection/design of
the vertical profiles |
| AE65 | 68 | 600/1,250 | 2,000/4,500 | Aluminium-steel | Freely oscillating | Aluminium profile
with magnetic strip
and sealing lips |
| AE85 | 89 | 600/1,250 | 2,000/5,500 | Aluminium-steel | Freely oscillating | Aluminium profile
with magnetic strip
and sealing lips |
| AE100 | 105 | 600/1,250 | 2,000/18,000 | Aluminium-steel | Freely oscillating | Aluminium profile
with magnetic strip
and sealing lips |
Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in
Rw (dB):52/56
Positive and frictional locking of the vertical element
connections: Convex-concave profile form, force of attraction of
the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details
regarding the element heights/element
widths indicated can only be confirmed following consultation with
the Design Department.
** Depending on the sound insulation/weight |
